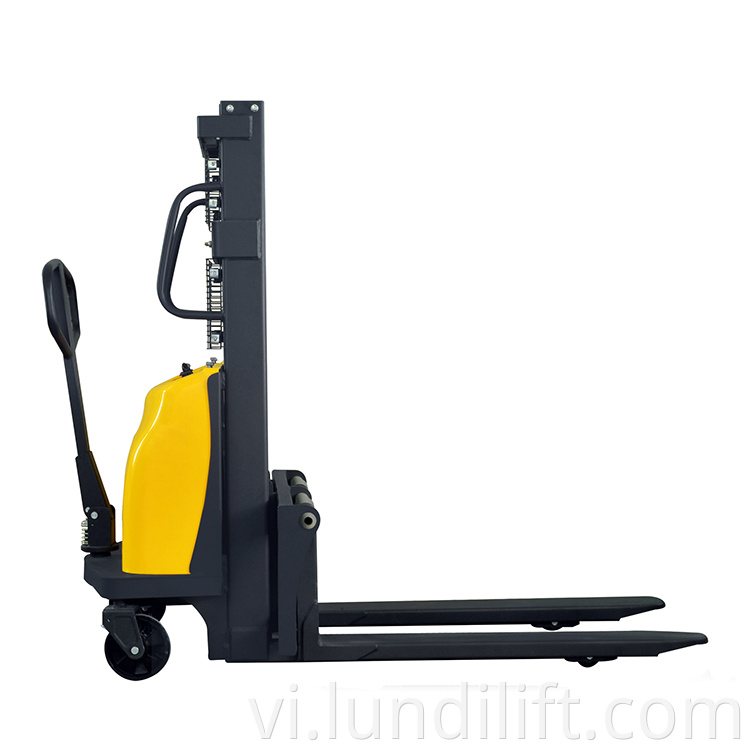

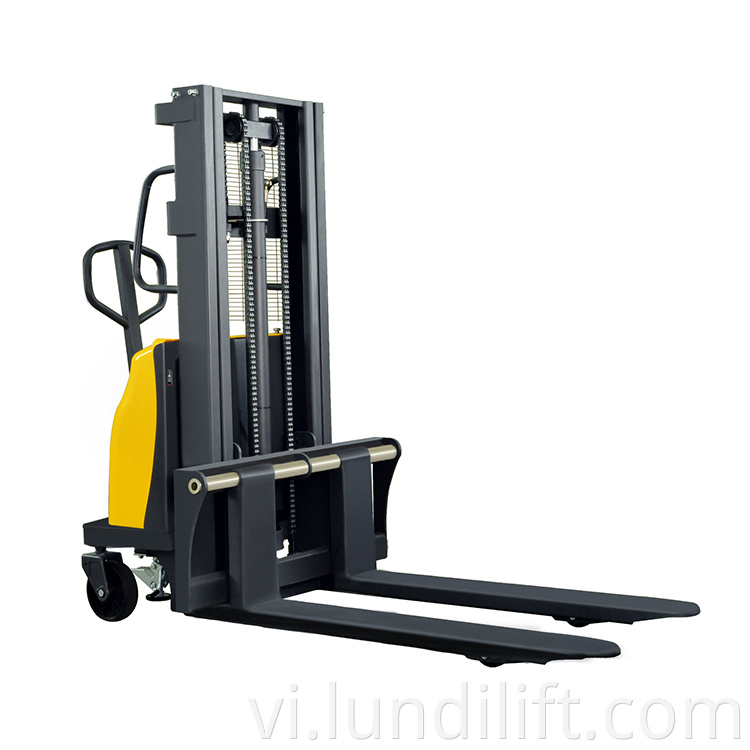

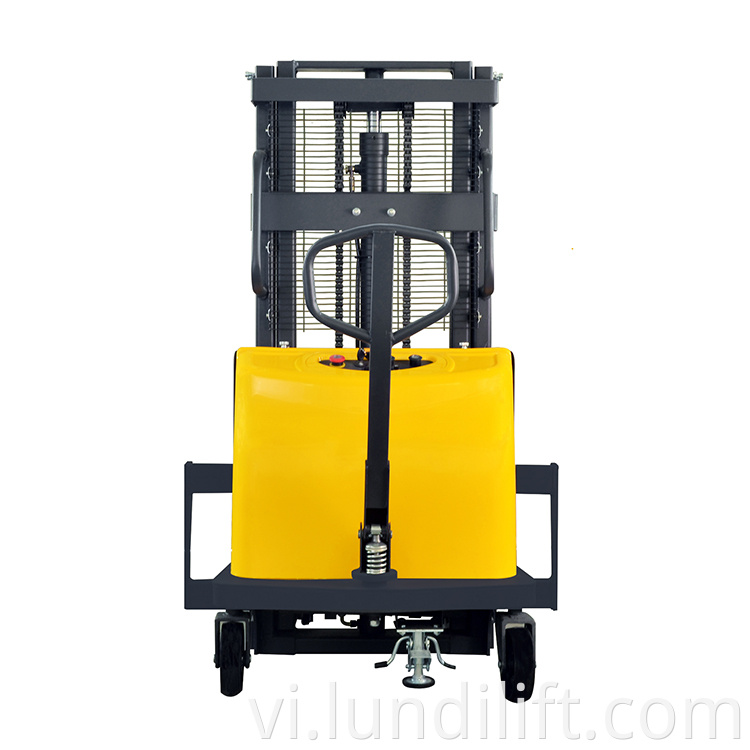

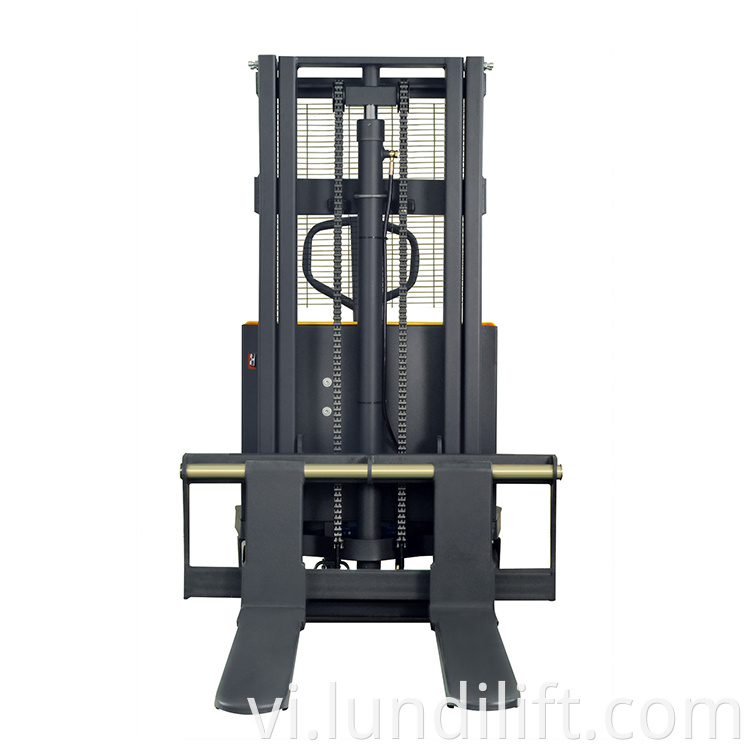

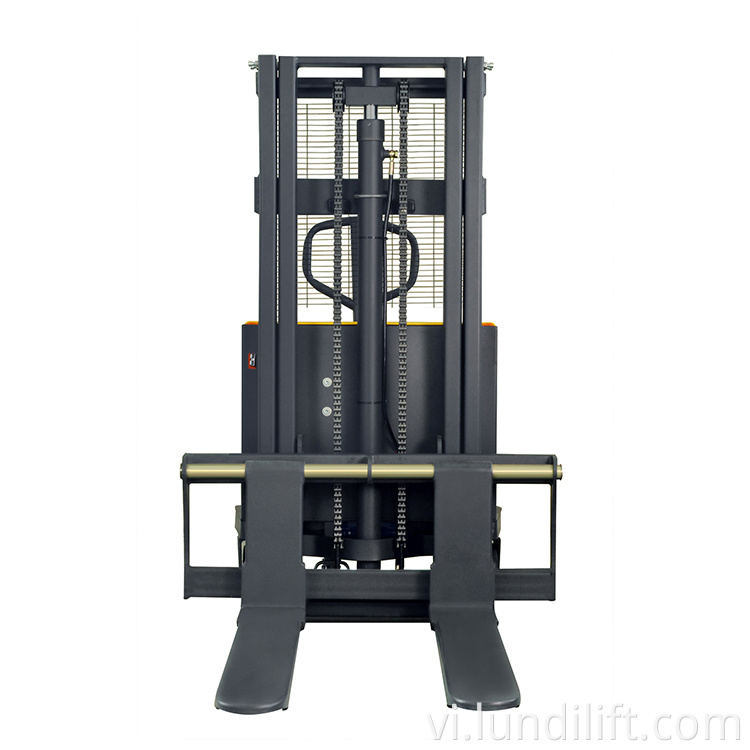

Phạm cơ ngăn xếp pallet bán điện 1,5T với thanh đẩy
$8891-4 Piece/Pieces
$8795-9 Piece/Pieces
$859≥10Piece/Pieces
Hình thức thanh toán: | D/A,D/P,T/T,Western Union |
Incoterm: | EXW |
Giao thông vận tải: | Ocean,Land |
Hải cảng: | SHANGHAI,QINGDAO,TIANJING |
$8891-4 Piece/Pieces
$8795-9 Piece/Pieces
$859≥10Piece/Pieces
Hình thức thanh toán: | D/A,D/P,T/T,Western Union |
Incoterm: | EXW |
Giao thông vận tải: | Ocean,Land |
Hải cảng: | SHANGHAI,QINGDAO,TIANJING |
Thương hiệu: Lundi
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: None
Condition: New
Brand Name: LunDI
Power Souce: Ac Motor
Min. Lifting Height: 90mm
Overall Dimensions: 50*160*1100 S/e/l (mm)
Warranty: 1 Year
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Thành Phần Cốt Lõi: Bình áp suất, Động cơ, khác, Ổ đỡ trục, Hộp số, Máy bơm, Hộp số, Động cơ
Model: BDD15
Working Mode: Semi-Electric
Weight(with Battery): 400kg
Lift Height: 2000mm
Overall Length: 1860mm
Overall Width: 800mm
Drivering Control System: AC
Thời Hạn Bảo Hành: 1 năm
After Warranty Service: Online Support
Local Service Location: None
After-sales Service Provided: Online Support
Ngành áp Dụng: Nhiều khách sạn, Cửa hàng may mặc, Cửa hàng vật liệu xây dựng, Cửa hàng sửa chữa máy móc, Nhà máy sản xuất, Trang trại, Sử dụng nhà, Bán lẻ, Công ty quảng cáo, Năng lượng & Khai thác, Cửa hàng Đồ ăn & Đồ uống
Dịch Vụ Ngoài Bảo Hành: Hỗ trợ kỹ thuật video
Trạng Thái: Mới
Nguồn Gốc: Trung Quốc
Nguồn Cấp: Động cơ AC
Báo Cáo Thử Nghiệm Cơ Học: Đã cung cấp
Video Kiểm Tra Nhà Máy: Đã cung cấp
Loại Tiếp Thị: Sản phẩm thông thường
Thời Gian Bảo Hành Thành Phần Cốt Lõi: 1 năm
Place Of Origin: Jiangsu, China
Fork Length: 1100 mm
Fork Width: 320-1030mm
Fork Width: 320-1030mm
Certification: CE, CE
Đơn vị bán hàng | : | Piece/Pieces |
Loại gói hàng | : | Phim được bọc, xuất khẩu pallet tiêu chuẩn hoặc vỏ gỗ. Phương pháp bao bì cụ thể có thể được thảo luận. |
Ví dụ về Ảnh | : |
Model |
|
BDD15 |
Working mode |
|
Electric |
Driving mode |
|
Walkie |
Rated load |
Q (kg) |
1500 |
Load centre distance |
c (mm) |
500 |
Front suspension |
x (mm) |
745 |
Wheel spacing |
Y (mm) |
1200 |
Weight (with battery) |
kg |
400 |
Wheels |
|
nylon |
Wheel size, front wheel |
|
Φ180*50 |
Wheel size, rear wheel |
|
Φ80×70 |
Wheel, front and rear number (x = drive wheel) |
|
2/2 |
Front wheel |
b10(mm) |
690 |
Rear wheel |
b11(mm) |
410/525 |
Lift height |
h1(mm) |
2000 |
Height of door frame retracted |
h3(mm) |
1590 |
Maximum height of gantry during operation |
h4(mm) |
2500 |
Lower height |
h13(mm) |
90 |
Overall length |
l1(mm) |
1860 |
Length of fork |
l2(mm) |
1100 |
Overall width |
b1(mm) |
800 |
Fork size |
S/e/l (mm) |
50×160×1100 |
Fork width |
b5(mm) |
320-1030 |
Distance center off clearance |
m2(mm) |
40 |
Channel width, tray 1000 x1200(1200 cross fork placement) |
Ast(mm) |
2305 |
Channel width, pallet 800 x1200(1200 placed along fork) |
Ast(mm) |
2258 |
Turning radius |
Wa(mm) |
1425 |
Speed up, full load/ no load |
m/s |
0.08/0.1 |
Drop speed, full load/ no load |
m/s |
0.15/0.12 |
Driving brake |
|
Mechanical braking |
Lift motor power |
kW |
2.2 |
Battery voltage/ rated capacity |
V/Ah |
12/120 |
Battery weight |
Kg |
43 |
Driver's Ear Noise Level DIN12053 |
dB (A) |
≤70 |
Q1: Bạn có phải là nhà máy không?
A1: Tất nhiên làPrivacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
